LED v HPS: How to Choose the Best Supplemental Lighting for Your Greenhouse

By Miriam Schaffer
light comparison graph

LED v HPS: How to Choose the Best Supplemental Lighting for Your Greenhouse

LED v HPS: How to Choose the Best Supplemental Lighting for Your Greenhouse

For the second installation of our greenhouse lighting series, we will be discussing the difference between the two most commonly used artificial lights in commercial greenhouse operations – HPS (high-pressure sodium) and LED (light-emitting diode). Read Part 1 here.



A Brief Introduction

HPS bulbs create light by sending electricity back and forth through an “arc tube”. An external ballast (a device that regulates the current to the lamp) is needed to provide voltage for a “starting pulse”. The starting pulse initiates a flow of electrons within the arc tube – producing a faint glow of light and heat. The heat vaporizes liquid mercury and sodium into gases. The gases enter the arc stream, constricting the arc, which generates more heat and light. At this point, the HPS bulb will emit a very bright orange/yellow spectrum.

LEDs create light by electroluminescence in a semiconductor material. One semiconductor is made of more negatively charged particles (i.e. electrons) and the other is made up of more positively charged particles. The electric current always travels one direction between the semiconductors – from the more negative side to the positive side. A photon of light is emitted where these two semiconductors meet. The color of the light emitted from an LED will depend on the kind of semiconductor that the electrons are passed through.

Both types of lights are effective for supporting year-round greenhouse growing, but we will drill down into the pros and cons of each so you can decide what type of light is best for your greenhouse operation.



HPS Lights

HPS lights have been around for a while and therefore are trusted by many growers. Their upfront cost is considerably lower than LED lights, making them favorable for growers with limited budgets. While you cannot customize the spectrum of HPS lights, they are capable of producing a huge quantity of light – which is beneficial for the flowering stage of plant growth. Unfortunately, the high intensity of light from an HPS lamp generates a lot of heat. This can be a plus in some northern climates, but in many cases, a greenhouse equipped with HPS lights requires a lot of additional cooling, potentially increasing operational costs. Additionally, HPS lights have limited dimming capabilities, which limits control over light intensity.

LED_cannabisHPS lights have an average lifetime (LC90) of 20,000 hours. This means that the light intensity of their bulbs can diminish to 90% of their potential after 20,000 hours. In contrast, the LC90 of LED bulbs is 50,000 hours.

Bottom Line: HPS lights have to be replaced more frequently than LEDs, increasing yearly operational costs.



LEDs

LED grow lights have increased in popularity with advancements in LED technology. Many growers favor LED lights because they require significantly less energy to run while producing equivalent yields to HPS lights. They also don’t radiate nearly as much heat as HPS lights which means your HVAC system can be downsized, lowering your energy costs. Bottoms Line: though they cost considerably more upfront, LEDs save growers considerably on operational costs.

Additionally, LEDs can generate a more suitable light spectrum than HPS. As shown in the graph below, HPS is limited by the gas (sodium) that can emit mostly in the yellow/red region (550 to 620nm). LEDs are more flexible and manufactured with an ability to emit more Blue (400-500nm) which is highly valuable for both photosynthesis and photomorphogenesis.

light comparison graph

Growers can mix and match LED colors depending on what they’re growing or their crop’s growth stage. LEDs also have a dimming capability of 0-100%, allowing for full control of light intensity. Dimming and spectrum tailoring capabilities also allow the grower to try different intensity combinations of colored LEDs depending on growth stages. Therefore, growers have the option to shape their plants in a certain manner to suit their environment. For our LED lighting solutions, we’ve partnered with California Lightworks to bring our clients the highest quality lights for greenhouse growing.

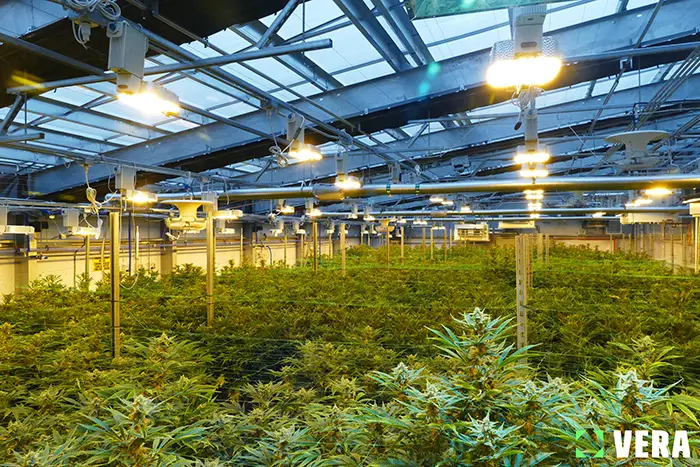

HPS_cannabis

Spectral Distribution

One thing to consider for LEDs and HPS in greenhouses is the type of fixture. HPS lights are limited by the nature of their technology because you need to have a wide reflector to make this technology efficient. Otherwise, most of the energy that you spend on getting photons in your canopy would disperse in space and be wasted.

LEDs are more directional than HPS, therefore the photons produced are going straight to your canopy. This can be a downside of the LEDs as well. It requires proper professional advice and sizing to make sure your canopy will have a uniform repartition of the light intensity, so as not to neglect some parts of your canopy. Luckily, most LED Manufacturers understand the importance of shading in a greenhouse environment. You can find some “bar-fixtures” that fit under the trusses or your structure minimizing the shade.

 Bottom line: You want to strive for a uniform light level from your artificial lights. HPS lights will induce more shade, especially because they need wide reflectors.



Custom Solutions

Both HPS and LED lighting solutions will be effective for year-round greenhouse growth, but depending on your budget and growing scenario the choice might not be so obvious. That’s where we come in. If you’re still wondering what supplemental lighting solution is best for your commercial greenhouse operation, contact a Ceres greenhouse expert today.
